Scanning touch probe REVO® RSP2

CMM2D3D

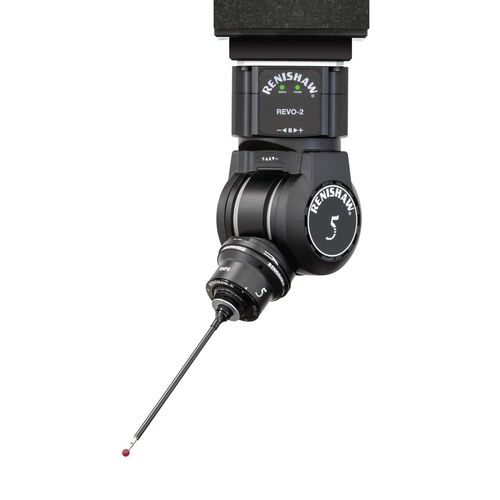

RSP2 is a dedicated lightweight probe for use on REVO systems, capable of 2D-scanning (x, y) and 3D touch-trigger measurement (x, y, z). The RSP2 has a universal body to which a number of different length stylus holders, with a minimum reach of 175 mm and a maximum reach of 500 mm, can be fitted. The RSP works using Renishaw's tip-sensing technology, specifically designed to reduce the scanning forces and minimise stylus wear. The UCC controller manages the type of stylus that can be used with RSP2, ensuring that optimal metrology performance is achieved. More information on stylus carrying of RSP2. Video animation of the RSP2 REVO probe's tip-sensing. As the stylus touches the part and bends the reflector is displaced. The altered return path of the laser is then sensed by a PSD. The exact tip position of the stylus is known because the reflector and stylus ball are close together.
