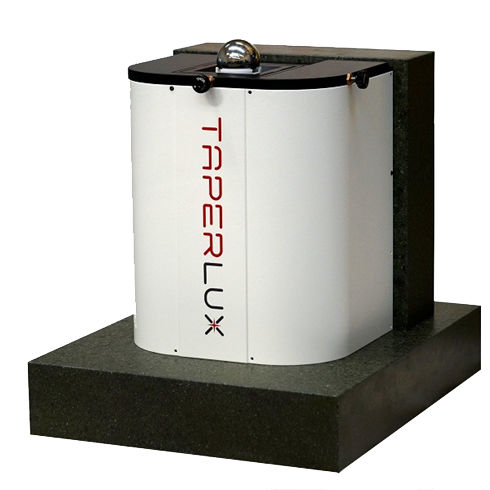

Non-contact laser scanner TaperLux

3Dfor aeronautics

Fast and data-rich measurement of internal tapers The TaperLux is an optical taper gauge that measures internal tapers and internal cylinders with nanometre resolution. The system scans the inside of a taper and produces a list of geometric features or a detailed 3D map of the surface without contact.ApplicationsTaperLux takes care of taper quality control captures seamlessly component features such as taper angle, defined diameters, depth, roundness, straightness and surface finish.Specifications Contactless and fast metrology solution Sub-micon accuracy and repeatability High throughput Compact and shop-floor hardened design
