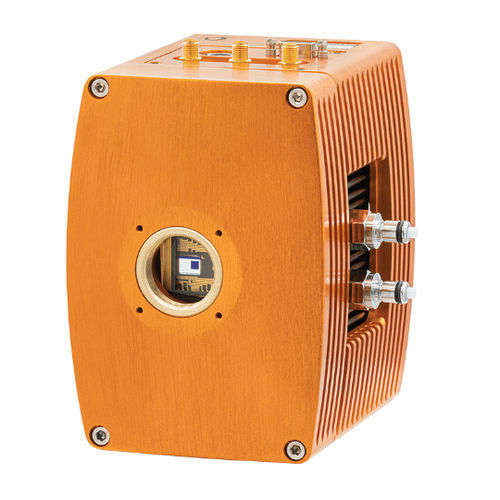

Video surveillance camera Kestrel 1000

UVtrackingfor the aerospace industry

Digital Monochrome Scientific Frame Transfer EMCCD, 1,800 fps, 128 x 128, 24µm x 24µm pixels, cooled to -20C . The digital Kestrel EMCCD camera is based on e2v’s CCD-60 back-thinned 1/3″ sensor. It combines high sensitivity, speed and resolution. with QE up to 95%. It has strong response from UV through to NIR. With EM gain on it offers less than 1 electron read noise. It uses a 16 bit A/D converter and offers a standard CameraLink output. At 1,800 fps, it offers some of the fastest and most sensitive speeds available on the market. Up to 1,800 frame per second with ROI – The fastest EMCCD on the market 128 x 128 Back-thinned EMCCD sensor – Enables optimum image resolution in low light imaging applications 16 bit Camera Link output – Realtime imaging for low latency photon to digital image Up to 95% QE from back-illuminated sensor – Optimum Photon collection Strong VIS and NIR response and ultrawide bandwidth – From 350nm through to 1100nm Adaptive Optics and Astronomy Calcium signaling High-resolution fluorescence imaging Hyperspectral imaging X-ray & High energy Particle Image Velocimetry High-speed object tracking
