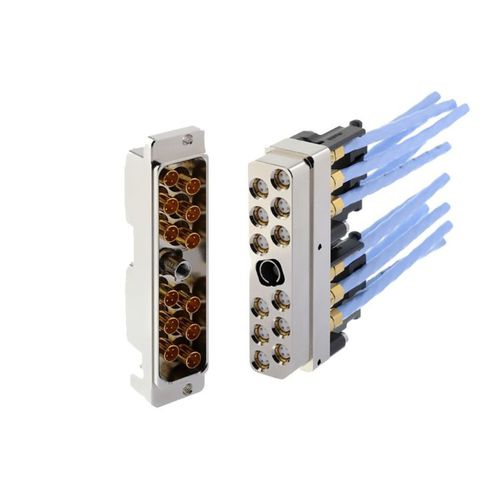

Providing high speed communication, the HDQX series is specially designed for the transmission of Ethernet and RF high speed signal required in civil and military applications. HDQX connectors offer cable-to-cable and PCB-to-cable solutions and are perfectly suited for data networks, IFE systems, video control centers and naval and military vehicle communication. Addressing new aerospace market challenges, this stackable solution provides: Space saving and high density solution with 12 size 8 cavities Simple and secure connection Extremely high electrical continuity Specially designed to be fitted with standardized ARINC 600 Quadrax, HDQX shells will also cover #8 BMA, triaxial, twinax contact technologies. Combining both the compact and rugged qualities necessary for high reliability and signal integrity, HDQX connectors provide customers with a high density and high performance solution for harsh aerospace environments. PERFORMANCES Mechanical Performance: Mating/Unmating: 100 cycles Random Vibration: Up to 16.9g Shocks: 50g - 3 shocks on each axis Mechanical axial strength (applied to strain relief): 100N as per EN2591-420 Electrical Performance: Shell to shell conductivity: < 2.5Ω Contact to shell conductivity: < 10 mΩ Environmental Performance: Altitude immersion 50,000 feet Temperature range: -65°C / +150°C (-85°F / +302°F) Temperature life: 1000 hours at 150°C (+302°F) Salt spray: 96 hours Magnetic permeability: 2µ
