Hybrid connector 38999 LUXCIS® 801
for aircraftARINCfiber optics

hybrid connector
hybrid connector
hybrid connector
hybrid connector
hybrid connector
hybrid connector
hybrid connector
Add to favorites
Compare this product


Characteristics

Type
hybrid
Applications
for aircraft
Format
ARINC, fiber optics
Shape
circular
Connection type
locking
Other characteristics
high-density, high-performance, hermetic

Description

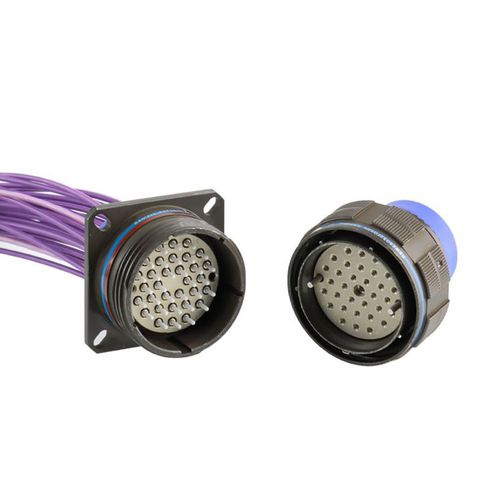

Radiall MIL-DTL-38999 for LuxCis® ARINC 801 fiber optic contact is a multi-channel connector. Compliant with ARINC 801 specifications and 38999 Series III standards for the shells, this connector is available in various configurations, sizes and materials to deliver high performance in harsh environments. It is an optimum fiber optic solution for all defense and aerospace applications. High optical and mechanical performances: Multimode, PC: IL: 0.1 dB / RL > 20 dB Singlemode, APC: IL: 0.2 dB / RL > 65 dB Temperature range: -55°C to +125°C Vibration: 50 Grms Durability: 500 mating cycles Shell and locking mechanism compliant to MIL-DTL-38999 Series III standard Rear grommet for direct sealing on the cable High contact density: 9 sizes available up to #25 with 32 FO contacts Easy inspection, cleaning and manipulation of fiber optic contacts with removable sleeve holders Hybrid version available to mix electrical and optical contacts Hermetic version available: R9 series High level of hermeticity: 10-7 bar.cm3/s Nickel Plated Aluminum Shell Operates at high altitudes, under extreme atmospheric pressure and in fast changing temperature conditions Available in pigtail solution to mate with MIL-DTL-38999 type connector
