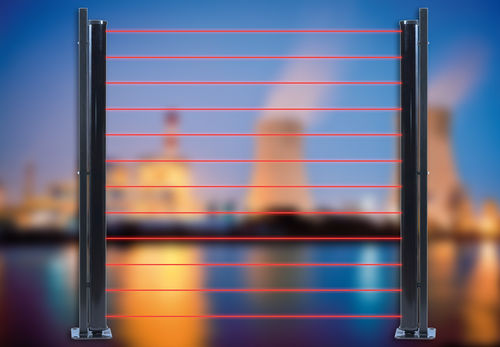

Intrusion detector MAXIRIS 3000 / 3100

fixedfor airport perimeter securityinfrared

Hard-wired High Security Networked IR Barrier MODULARITTY : Two different housings to adapt to different site configurations INNOVATION : ZONING function, TCP/IP network for remote set-up and maintenance ADAPTABILITY : Single or double face; Single or dual direction; Adaptable column heights Overview The MAXIRIS 3000/3100 infrared barriers deliver the highest level of performance in invisible/virtual fence systems from PROTECH. For perimeters longer than .6 miles (or 1 km), the MAXIRIS 3000/3100 columns can be directly connected to a TCP/IP network or RS485 bus via the MAXIBUS 3000 Hub. The MAXIRIS ZONING function enables up to three virtual detection zones per barrier/ system that can be configured accordingly, allowing for video verification based on alarms by zone. Each barrier is self-contained with a multi-lingual HTML server integrated into each column (English, French, Spanish, etc.). System configuration and maintenance operations can be handled remotely. MAXIRIS 3000 Single face column Up to 36 beams per column and per direction Zoning function: 4 to 10 cells per column MAXIRIS 3100 Single and double face column High-density beams: up to 64 beams per two-direction column Zoning function: minimum of 4 to maximum of 10 cells per column Zoning function: 4 to 10 cells per column
