Ultrasonic inspection machine NDT

surfacefor NDT

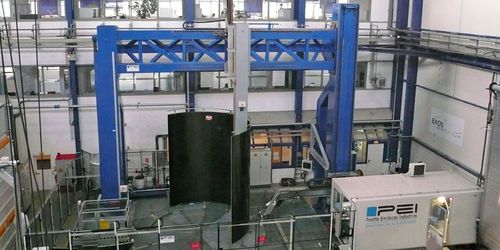

Pinette P.E.I. is a leading provider of testing & inspection systems. Thus, we offer a large range of NonDestructive Testing (NDT) & Inspection (NDI) systems, based on all the most advanced technologies available on the market. We are committed to enhance testing procedures and equipment, by according a huge importance to R&D efforts. ASSEMBLY, MACHINING AND NONDESTRUCTIVE INSPECTION (NDI) SYSTEMS pinette - NDT test benchRepresenting the root of Pinette P.E.I.'s know-how, our mean of presentation, drilling, assembly, milling in interpolation, and dimensional check automated of large composites sandwich casings is used for satellites carrying on ARIANE 5. Adjustable height from 5,000 to 7,000 mm The whole system shows a high ease of use for operators Jig capacity of Ø 6,000 mm 6 axes CNC References precision of + / - 0,2 mm Displacement precision less than + / - 0,1 mm Great consideration of all hygiene and safety aspects, this system will fit all your criteria LARGE CAPACITY NONDESTRUCTIVE TESTING (NDT) SYSTEM NDT test bench using ultra sound technology with 14 axes CNC pinettePinette P.E.I. has developed a large capacity NDT test bench using ultrasonic testing through the water jet and contact technique. Accepts parts up to 6 meters in diameter and height Great versatility: accepts flat or revolving forms & continuous or discontinuous parts 14 axes CNC Part loading system with integrated mobile platform Centralized intuitive control (HMI on one centralized control panel) High productivity thanks to simultaneous controls through twin sensors
