Pressure test bench

temperaturecompressionbending

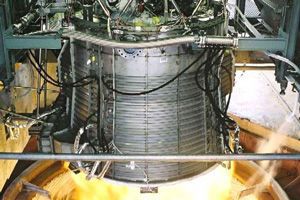

QUALIFICATION TEST BENCH OF FEEDING PIPES DISCONNECTIONS FOR ARIANE 5 Pinette P.E.I. has developed a qualification test bench of ARIANE 5 feeding pipes disconnections. The test bench performs any kinematic simulations of launch you can possibly imagine, as well as limit conditions with programming and data acquisition system. Position, speed, acceleration and cryogenic temperature simulations are performed to simulate real conditions, with a confirmed availability and reliability at 100%. Thanks to its business strategy of collaborative engineering, Pinette P.E.I. can deliver the bench in a highly competitive lead time. VULCAIN 2 CRYOGENIC ENGINE NOZZLE TEST BENCH Pinette P.E.I. provides test bench for re-qualification of VULCAIN 2 cryogenic engine nozzle. This system tests the specimen in launching conditions, with simulated nozzle stressing conditions. Its high resistance to acoustic, thermal and vibratory environments, its reliability and perfect availability, and its high speed development scheme make this test bench a mixture of innovation and technology. Furthermore, Pinette P.E.I. has designed dynamic stress test bench for the piloting system of VULCAIN cryogenic engine nozzle. By applying antagonistic efforts, the test bench simulates all the efforts being opposed to the direct efforts piloted by servo cylinders. ARIANE 6 COMPOSITE PRESSURIZED TANKS TEST BENCH This static stress testing equipment can apply traction, compression and bending efforts, as well as internal pressure. Cumulated stress possibly applied up to 52,000 kN for a mass of 180 tons Test bench for civil launchers up to a diameter of 4,000 mm and a height of 8,000 mm..
