Data connector CWAP

PCBfor aircraftARINC

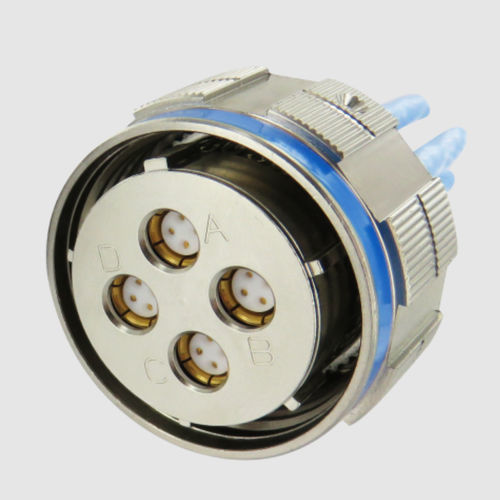

The Cabin Wireless Access Points units are providing airlines’ crews and passengers alike a convenient and seamless access to Information, Data and Entertainment through Personal Electronic Devices or in-seat equipments. Amphenol Socapex CWAP connector, with its dedicated 4 quadrax insert arrangement, is the perfect choice to achieve the expected level of performance, reliability and compliance to the ARINC standard. Features & Benefits Connectors Derived from MIL-DTL-38999 and EN3645 Size 19 connectors (other sizes available) Shell material and plating: aluminum with electroless nickel Shell-to-shell bottoming Grounding fingers on the plug shell Completely mates and self-locks in a 360° turn of the coupling nut Anti-decoupling device allows high vibration performance Metallic insert to maintain ground plane with the connector shell for all the shielded contacts Dedicated stand-off receptacle with integrated ground pin Front Release / Front removable PCB pin contact on the receptacle side Rear Release / Rear removable crimp socket contact on the plug side Quadrax Amphenol® Quadrax Contacts offers several advantages for high data transfer rates, low power consumption and excellent EMI compatibility: Four strategically spaced inner contacts form two 100 or 150 Ohm matched impedance differential pairs Outer contact has rugged wall section for durability Available in size 8 crimp termination style Also available in size 8 with PC tails
