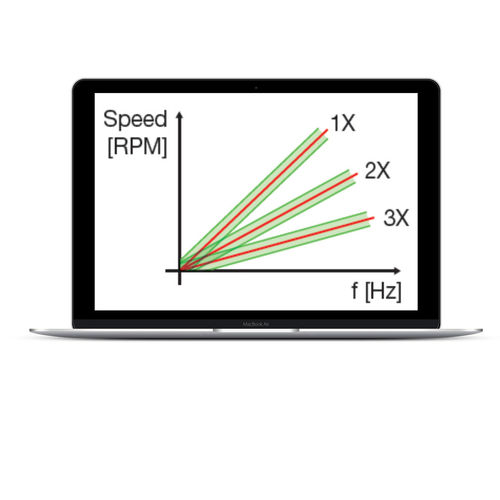

Getting faithful order results from run-up/down requires specific signal processing techniques. This is true especially for high speed variation systems in automotive and aerospace applications. Synchronous Order Analysis (SOA) Provides stable and repeatable measurements for any speed-varying machinery. Using proven real-time angular resampling algorithms, SOA extracts amplitude and phase of orders; even from fast transients. Up to 40 kHz real-time analysis Time domain filters (A, C, Integrators) Adjustable keyphasor phase (edge/order 1) 1/32nd order resolution Order or angular domain averaging Max order contribution search Simultaneous order analysis on 2 shaft Waterfall & Profiles Collect and synchronize all data generated by analyses. Results are sorted based on a choice of references for the Z Axis (RPM, time and levels) and represented in 3D or profile views (Bode plots, cross-phase tracking, …). The section manager features orders, overall, constant frequencies and spectra extraction in one click. Constant Band Tracking Measure gearboxes’ modulated and often buried noise and vibration orders.
