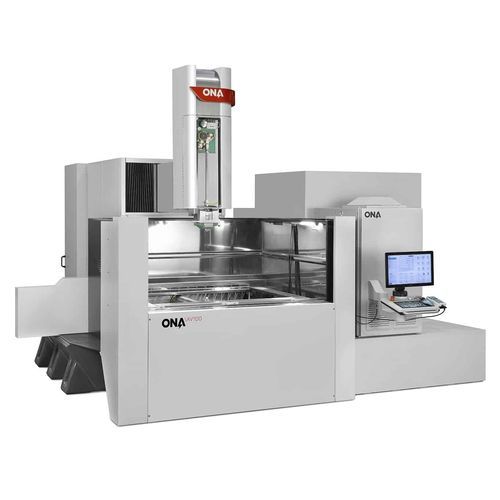

Wire-cut EDM AV100

3D

Maximum workpiece dimensions - Large - 1950 mm - 76.8 in Wide - 1600 mm - 63 in High - 600 mm - 23.6 in Allowable weight on table - 10000 kg - 22000 Ibs U/V-axes travel - 500 x 500 mm - 19.7 x 19.7 in Maximum angle of conical cut (optionally ±45º) - +/- 30º / 400 mm - +/- 30º / 15.8 in Wire diameter - 0.20 / 0.33 mm - 0.008 – 0.013 in Maximum cutting speed - 360 mm2/min – Ø 0.30 mm (Xcc wire) - 34 in2/hr – Ø 0.01 in (Xcc wire) Benefits of AV Technology The numerical control, designed on the concept of usability, has: a 23” touch interface, Intuitive and visually friendly menus, Applications represented by icons, Real-time information, greater control of the process.. The optimisation of work times is another of the main functions of the AV machines. The system allows you to view the list of jobs (JOBs list). The new interface displays the workpiece in 3D and allows the operator to rotate and move it according to their requirements with a simple tap on the screen thanks to its tactile technology. The new generator enables cutting at high speeds and guarantees great efficiency of the machines. Savings of 30% and a 450mm2/min (0.33 wire(XCC)) speed.. ONA Script programming + Medition in-process option in order to have a total control of the workpiece positioning.
