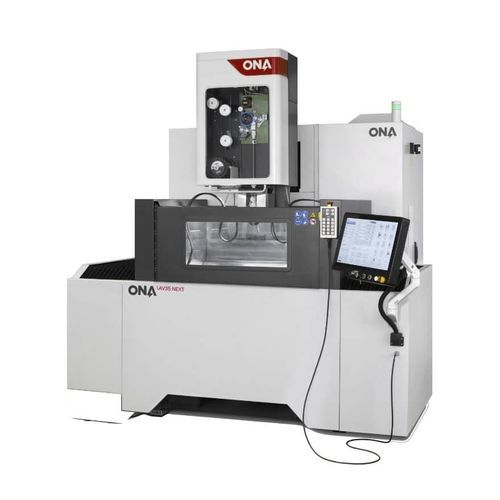

Wire-cut EDM AV35 NEXT

3Dcompactprecision

Our wire EDM range advances at the pace of your achievements. Machines in constant innovation for an experience that improves and renews itself at every step. Gathering the best of our 70 years of experience in different technologies, to offer you the best ergonomics, ease of use and precision in the production of your parts. Worktank internal dimension - Large - 1.060 mm - 18.5 in Wide - 750 mm - 18.5 in High - 400 mm - 18.5 in U-V axes travel - 120 mm x 120 mm - 4.7 x 4.7 in Maximum angle of conical cut (optionally ±45º) - +/- 30º / 87 mm - +/- 30º / 3.4 in Wire diameter range - 0.07 mm – 0.33 mm - 0.003 – 0.013 in Maximum cutting speed - 450 mm2/min – Ø 0.33 mm (Xcc wire) - 42 in2/hr – Ø 0.013 in (Xcc wire) Minimum roughness - 0,1 µm Ra - 0,1 µm Ra Benefits of AV Technology The numerical control, designed on the concept of usability, has: a 21” touch interface, Intuitive and visually friendly menus, Applications represented by icons, Real-time information, greater control of the process. The optimisation of work times is another of the main functions of the AV machines. The system allows you to view the list of jobs (JOBs list). The new interface displays the workpiece in 3D and allows the operator to rotate and move it according to their requirements with a simple tap on the screen thanks to its tactile technology. The new generator enables cutting at high speeds and guarantees great efficiency of the machines. Savings of 30% and a 450 mm²/min (0.33 wire (XCC)) speed. ONA Script programming + Medition in-process option in order to have a total control of the workpiece positioning.
