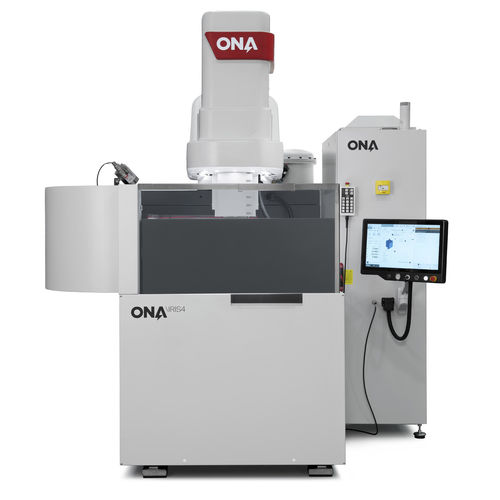

Die sinking EDM IRIS 4

compact

A new level of connectivity and digitization that allows you to simulate any project and reduce the possibility of error thanks to its powerful graphic engine, capable of converting your needs into precise, profitable and, above all, successful results. Max. distance between table and head - 675 mm - 27.1 in Worktank internal dimensions - Length - 1.070 mm - 42.1 in Width - 770 mm - 30.3 in Height - 450 mm - 17.7 in Work table dimension - 800 x 600 mm - 31.5 x 23.6 in Allowable weight on the table - 1.500 kg - 3300 Ibs Type of work tank - Abatible - Drop tank Maximum electrode weight - 100 kg - 220 Ibs Minimum roughness - 0,08 – 0,1 µm Ra - 0.08 – 0,1 µm Ra Intensity of the generator - 100|200|400 A - 100|200|400 A Benefits of ONA IRIS Technology A 100% digital generator totally configurable and programmable. Savings in electrodes, wear is reduced up to 500%. The generator optimises the erosion process and adapts it to the discharge conditions of each moment. Full digital adjustment of eroding spark up to 30 different parameters allows optimizing erosion to its best. Unique technological innovation. Generator 30% more powerful than the rest of the market. It is capable of reaching up to 400 A in intensity. Powerful control with up to 8 simmultaeously interpolating axes and volumetric compensation in the entire work area.
