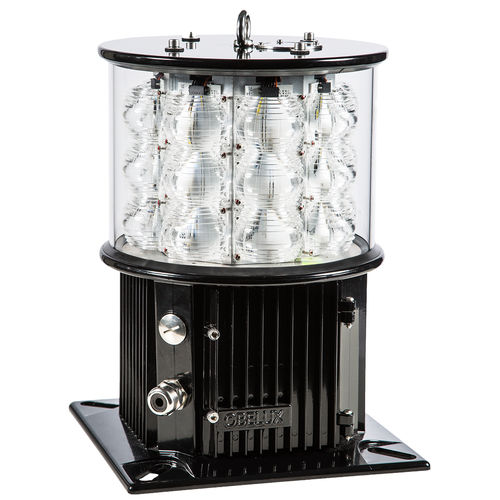

Obstruction beacon

positionfor helidecksLED

Based on LED technology Doesn’t require any additional controllers Incorporated photocell for automatic intensity adjustment Several intensity adjustment levels available Infrared (850nm) incorporated for NVG compatibility Aluminium body and glass cover Height only 408mm, and weight 14kg Operating voltage 100-240VAC 5 year warranty- the longest in the industry Heliport beacon provides a long range visual guidance and identification of the heliport. The heliport beacon is located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range. OPTICAL CHARACTERISTICS Colour White Flash Characteristics 0.8 sec – 1.2 sec – 0.8 sec, flash duration 0.5 -2.0 milliseconds Horizontal beam 360° Vertical beam Vertical angle 0…1.5° - Min. Intensity 1,700 cd (effective) Vertical angle 1.5…2.5° - Min. Intensity 2,500 cd (effective) Vertical angle 2.5…4° - Min. Intensity 1,700 cd (effective) Vertical angle 4…7° - Min. Intensity 750 cd (effective) Vertical angle 7…10° - Min. Intensity 250 cd (effective) DESIGN TO MEET ICAO Annex 14, 2013 4th Edition, Heliport Beacon
