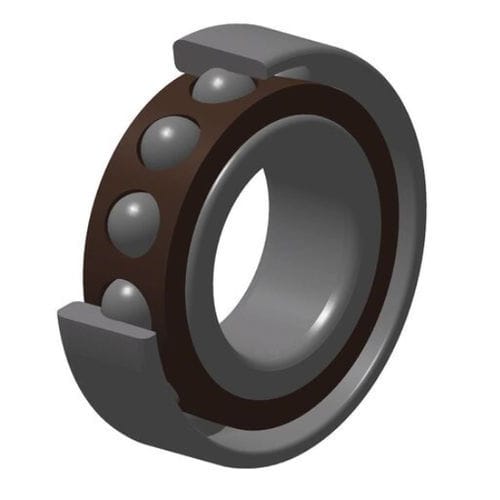

Ball bearing bearing 7010

radialaxialangular-contact

The single row angular contact ball bearing is designed to withstand combined loads with a predominant axial component. Installed in opposition with another bearing of the same type, it guarantees high mounting rigidity. The NTN-SNR range is available in several variants: 30° or 40° angles, polyamide, pressed steel or solid brass cages, universal pairing available, clearances or preloads, etc. PRODUCT DEFINITION Brand - NTN d - Internal diameter - 50 mm D - External diameter - 80 mm B - Bearing/Inner ring width - 16 mm a - Charge load application point - 27 mm α - Contact angle - 30 ° rs - Min fillet radius - 1 mm r1s - Min fillet radius - 0,6 mm Radial clearance class - CN Mass - 0,306 kg Product classification image PRODUCT PERFORMANCE C - Dynamic load - 26,2 kN C0 - Static load - 20,1 kN Cu - Fatigue limit load - 1,42 kN Nlim - Oil lubrication limit speed - 11000 tr/min Nlim - Grease lubrication limit speed - 8600 tr/min Tmin - Min operating temperature - -20 °C Tmax - Max operating temperature - 120 °C
