0 - 10hp piston engine DF35

0 - 10kgfor light aircraft4-stroke

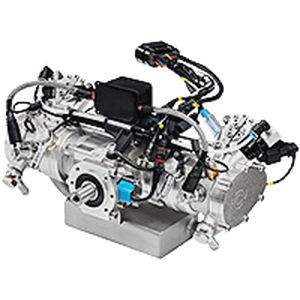

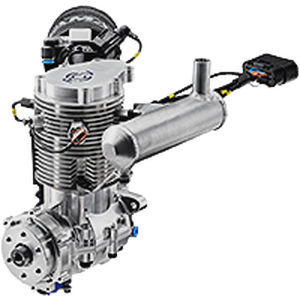

This 4-stroke single cylinder DF35 Engine offers a combustion system with a patented revolving valve, creating an ideal compact combustion chamber for heavy-fuel operation. The DF35, which can be liquid or air cooled, offers reliable combustion and power on heavy-fuel. The engine also offers excellent starting over a wide range of temperatures and high power to weight ratio. Check out more key features below to determine if the RCV35 is the single cylinder engine for you! 4-stroke single-cylinder rotating valve fuel injected engine 35cc displacement 2.2kW (3.0 hp) @ 8500 rpm maximum power 10000 rpm maximum continuous revs Gasoline; JP5, JP8, Jet A-1, and similar kerosene-based fuels Oil/Fuel Ration 25:1 Air cooled 2100 grams ± 200 grams total weight. Includes base engine, ECU, fuel system, wiring and standard exhaust. Generator, prop and cowlings not included. RCV Engines Ltd has a range of multi-fuel UAV engines that can operate equally well on gasoline or heavy fuel. The RCV combustion system is based on a unique patented revolving valve, that generates a high level of turbulence for good mixture preparation and creates an ideal compact combustion chamber for heavy fuel operation. • Four-stroke cycle for low emissions and fuel consumption • Large valve area gives high power with a wide power band • Reliable combustion and power on heavy fuel from 8:1 to 15:1 AFR • Excellent starting over a wide temperature range -20°C to +55°C • Resistant to detonation – heavy fuel operation without de-rating • No combustion chamber hot spots – minimising carbon build up
