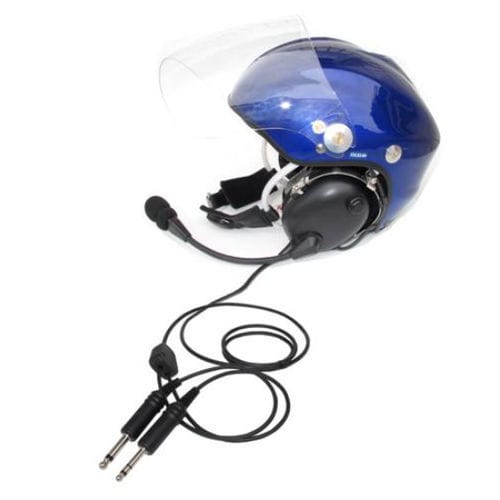

Free flight helmet HM1101A

half jetblackgreen

PNR Aviation Headset GA Use Dual Plugs Super Soft Double Foam Head Pad New Comfort foam, undercut ear seals Molded cord assembly made to exceptional pull and flex standards Noise-canceling electret Precision flex boom for perfect microphone placement Straight cord from headset to molded plug, 150CM Color: Black, green Headphone Type: Dynamic (F50) Frequency Response:100Hz to 8 kHz Sensitivity:95+/-5 dB SPL (1 kHz, 1 mW input per earcup side) full volume on ear simulator Impedance:150 ohms (300 ohms each; wired in parallel) Rate Input:100mW Max. Input: 250mW Microphone and Amplifier: Element Type: Noise-canceling electret Frequency Response:150Hz to 5 kHz Operating Voltage (supplied by aircraft ):8-32 Volts DC Matching Impedance: 150-1000 ohms Sensitivity:-33+/-4 dB (ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load) Operating Temperature: -20 to 70°C Cordage: Straight cord from headset to molded plug, 150CM Intercom Connections Plug: Earphone Plug: PJ-055( .25"F6.3 phone plug) Microphone Plug:PJ-068( .206"F5.2 phone plug) Noise Reduction Specifications: Attenuation Frequency Band__________20Hz~20KHz Main Attenuation Frequency Band__________20Hz~600Hz Attenuation Capability__________18~21dB Power Consumption__________30 mW Headset size range Height: 10 to 14 cm Color: Green/Black Boom: Flexible Boom
