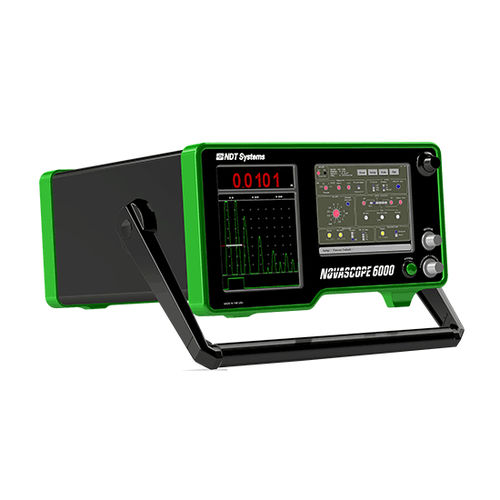

Coating thickness gauge NovaScope 6000

analogfor aeronauticsfor NDT

The Novascope 6000 is an all-digital portable ultra-high precision thickness gauging instrument. Currently on its sixth generation, the Novascope series has been in use since the 1980s by top airfoil manufacturers and reconditioning and cast structural manufacturing facilities worldwide. With easy-to-use touchscreen controls, class leading ultra-thin spatial resolution, and high resolution (.0001in, .0025mm), it tackles the most challenging thickness gauging applications. It features a brilliant color display that offers a clear and precise waveform even in the most difficult lighting conditions. The latest version is backward compatible and allows the Novascope 6000 to be a direct drop-in replacement. Computer-based data transfer software comes included as a standard feature. 0.0001″ (0.0025 mm) digital resolution; as low as 0.010″ (0.254 mm) thickness resolution Compatible with contact, delay line or immersion transducers Dual-Trace display; A-Trace and gates Displays English or Metric units Velocity display (quartz-stabilized, digital) Full RF or rectified RF display Selectable multiple echo interval Receiver attenuation control plus manual gain and Automatic Gain Control (AGC) TAC (Thickness Amplitude Compensation) for noise suppression Outputs: Alarms, USB, Serial RS-232C, Micro HDMI
