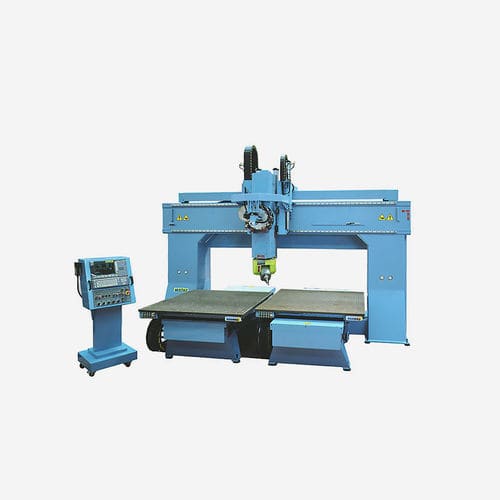

5-axis machining center F with swiveling spindlefor aeronauticsCNC
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- with swiveling spindle
- Applications
- for aeronautics
- Other characteristics
- CNC, with moving table
- Rotational speed
Max.: 24,000 rpm
(150,796 rad.min-1)Min.: 18,000 rpm
(113,097 rad.min-1)- X travel
3,400 mm, 6,200 mm
(133.86 in, 244.09 in)- Y travel
1,600 mm, 2,600 mm
(62.99 in, 102.36 in)- Z travel
600 mm, 1,600 mm
(23.62 in, 62.99 in)
Description
The F SERIES, articulating 5 axes Machining Centres, are designed, and built with rigidity, agility, and flexibility in mind. F SERIES specially features an extra rigid construction with opposing slide ways on the Z axis and the reinforced cross beam to ensure straightness and squareness precision is maintained even with its extra-long Y-V-axes. These and many other features all add to this machine to cope with every demand and to get even the toughest job done without stress. Routing applications include Moulds Tools Trimming, Modelling, Carving, Pattern Making, and a host of other applications throughout several industries.
