4-axis machining center B
3-axisverticalfor aeronautics

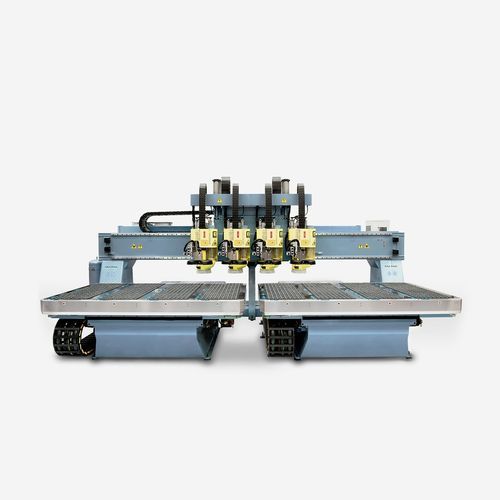

4-axis machining center - B - MULTIAX INTERNATIONAL CNC SRL - 3-axis / vertical / for aeronautics

4-axis machining center - B - MULTIAX INTERNATIONAL CNC SRL - 3-axis / vertical / for aeronautics - image - 2

4-axis machining center - B - MULTIAX INTERNATIONAL CNC SRL - 3-axis / vertical / for aeronautics - image - 3

Add to favorites

Compare this product

Go to the MULTIAX INTERNATIONAL CNC SRL website for more information

Characteristics

Number of axes

3-axis, 4-axis

Spindle orientation

vertical

Applications

for aeronautics, heavy-duty, door

Other characteristics

CNC, with moving table

Rotational speed

Min.: 18,000 rpm
(113,097 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

X travel

3,000 mm, 4,000 mm
(118.11 in, 157.48 in)

Y travel

2,600 mm, 3,600 mm
(102.36 in, 141.73 in)

Z travel

400 mm
(15.75 in)

Description

The B SERIES is the most robust, precise, and productive machine in the complete Muitiax line of CNC Routers. Designed and built to run 24/7 for the most demanding CNC users in the wood, N/F metals, plastics, and composites industries. The B Series features a heavy-duty construction, oversized, to deliver long-life reliability and consistent high precision. B SERIES specifically feature extra rigid weldments, with opposing slide ways and extra reinforced cross beams, for total precision across the range. The "doors" versions are an innovative, dedicated answer to cabinet door manufacturers who process smaller and smaller batches at mass production rates continuously. The doors basic versions feature liquid cooled spindles with Digital Floating System (Eu Patent PCT/EU n.1368155) and the unique Parallel Quadrilateral Table (EU Patent PCT/EU n.1082196), to maximize production capacity.
