5-axis machining center K
with swiveling spindlefor the aerospace industryCNC

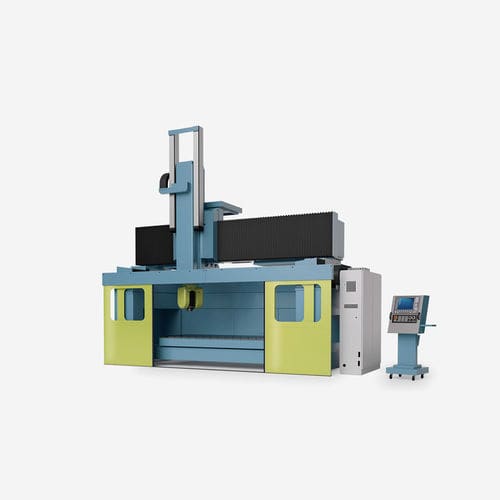

5-axis machining center - K - MULTIAX INTERNATIONAL CNC SRL - with swiveling spindle / for the aerospace industry / CNC

Add to favorites

Compare this product

Go to the MULTIAX INTERNATIONAL CNC SRL website for more information

Characteristics

Number of axes

5-axis

Spindle orientation

with swiveling spindle

Applications

for the aerospace industry

Other characteristics

CNC, gantry, with fixed table

Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 18,000 rpm
(113,097 rad.min-1)

X travel

Max.: 5,000 mm
(196.85 in)

Min.: 2,600 mm
(102.36 in)

Y travel

1,500 mm
(59.06 in)

Z travel

1,300 mm
(51.18 in)

Description

Compact, yet highly powerful, precise and versatile 5-axis CNC milling and machining center mounted on a monobloc basement. Its welded and reinforced, stress relieved steel structure is designed for heavy-duty operations, and rigorously FEM analyzed to ensure the dimensional stability and rigidity for the most demanding requirements. Thanks to modular engineering, there are numerous choices through different versions including different types of guides, different number of guide ways and carriages, alternative arrangement of transmission ram-in ram Z ram arrangement, different spindles and heads, including torque motors.
