Electric actuator 863 series

rotaryfor aircraftspur gear

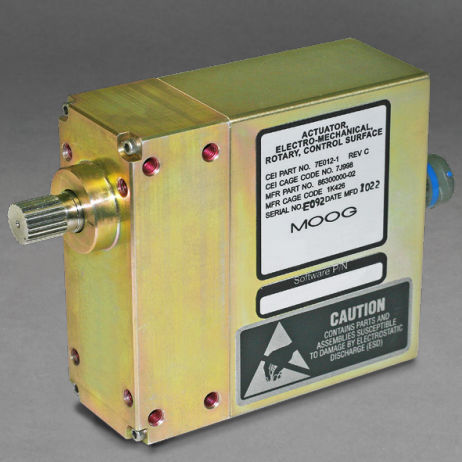

The Model 863 is a high performance rotary servo electromechanical actuator that integrates a rare earth brushless DC motor and servo loop control electronics. The 863 servo is used for flight control, throttle control and other utility functions for UAV and aerospace programs. These actuators are designed to operate under extreme environmental conditions and customers find them easy to implement into their systems. This model is designed to be submersible up to 3 meters for a maximum of 3 hours, allowing it to be used on multiple applications including target drones. Features Integrated position servo loop control with either analog or digital communications Non-jamming mechanical stops 4 stage spur gear train assembly Corrosion protected finish output shaft, 0.5 inch SAE spline Brushless permanent magnet motor design High torque capacity in small volume Single film position transducer Digital telemetry feedback Electronic stops limit input command Signal interface is digital RS-485 electrical protocol Consult factory for other signal interfaces Thermal management option available for high altitude application Water immersion to 3 meters Benefits Robust structural design Mechanical stops Low weight to power performance Customizable
