Electric actuator 935 series
rotaryfor aircraftspur gear

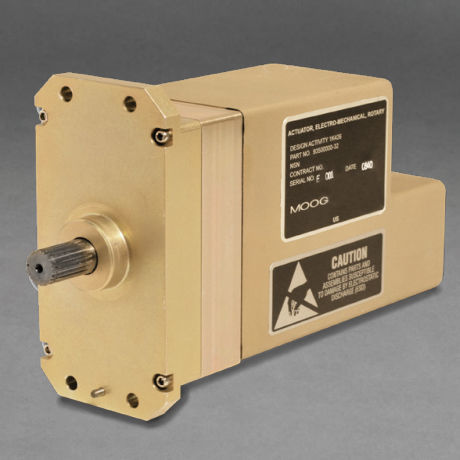

Electric actuator - 935 series - MOOG INC. - rotary / for aircraft / spur gear
Electric actuator - 935 series - MOOG INC. - rotary / for aircraft / spur gear
Electric actuator - 935 series - MOOG INC. - rotary / for aircraft / spur gear - image - 2
Electric actuator - 935 series - MOOG INC. - rotary / for aircraft / spur gear - image - 3
Electric actuator - 935 series - MOOG INC. - rotary / for aircraft / spur gear - image - 4
Electric actuator - 935 series - MOOG INC. - rotary / for aircraft / spur gear - image - 5
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
rotary
Applications
for aircraft
Technology
spur gear

Description

The Model 935 is one of the highest performance rotary servo actuators available on the market. We offer this actuator with a digital and analog communications interface. Also, we can customize the actuator to provide up to ±90 degree angular excursion in a slightly longer package. These options allow our customers flexibility based upon the architecture in the system to have a drop-in servo actuator. Features Integrated position servo loop control with either analog or digital communications Non-jamming mechanical stops 4 stage spur gear train assembly Stainless steel output shaft, 0.5 inch SAE spline Brushlesspermanent magnet motor design High temperature capability Electronic stops limit input command NTC thermistor in motor for temp sensing of motor windings Outputs for current, velocity and temperature telemetry Signal interface is digital RS-485 electrical protocol Thermal management option available for high altitude application Benefits Robust structural design Mechanical stops Low weight to power performance Customizable
