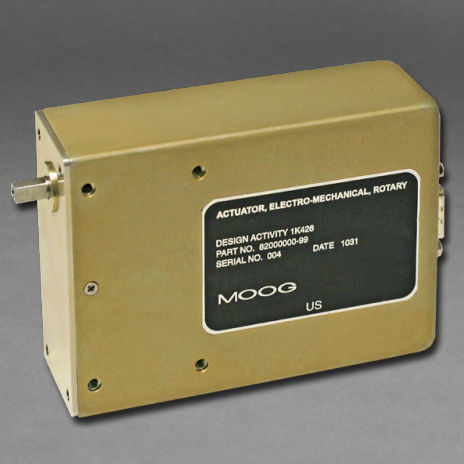

Electric actuator 820 series

rotaryfor aircraft

The Model 820 is a high performance rotary servo electromechanical actuator designed for extreme conditions and utilizes a brushless DC motor as its prime mover within the product. This actuator is used for surface positioning, throttle control and other utility functions on UAV and aerospace platforms. The actuator has been chosen to support new and existing programs. The Model 820 is one of our most versatile actuators, offering integral servo electronics and multiple communication interfaces. Features Small size and weight Power compatibility - 28 VDC buss Power point - up to 230 deg/sec at 60 in-lbs Torque output - up to 150 in-lbs Brushless permanent magnet motor design Position and torque limiting High accuracy film transducer Position output signal / feedback Operates with various command inputs Low backlash design Stroke or displacement up to ±45 degrees, Moog will evaluate higher angular performance requirements as needed High efficiency steel gearing Benefits Robust structural design Mechanical stops Low weigh to power performance Customizable
