Electric actuator SM34165D
rotaryfor aircraftwith servo-motor

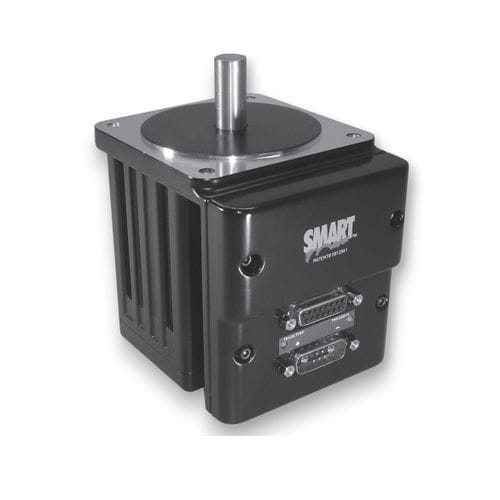

Electric actuator - SM34165D - MOOG Animatics - rotary / for aircraft / with servo-motor
Electric actuator - SM34165D - MOOG Animatics - rotary / for aircraft / with servo-motor
Electric actuator - SM34165D - MOOG Animatics - rotary / for aircraft / with servo-motor - image - 2
Electric actuator - SM34165D - MOOG Animatics - rotary / for aircraft / with servo-motor - image - 3
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
rotary
Applications
for aircraft
Technology
with servo-motor
Torque

1.09 Nm, 1.6 Nm
(0.804 ft.lb, 1.18 ft.lb)

Description

NEMA 34 size SmartMotor™ with integrated motor, controller, amplifier, encoder and communications bus. Nominal Continous Power - 235 - Watts No Load Speed - 3,100 - RPM Max. Continous Current* @ 2400 RPM - 6.02 - Amps Peak Power @ 1900 RPM - 265 - Watts Voltage Constant - 14.98 - V/kRPM Inductance - 1.72 - mH Encoder Resolution - 8,000 - Counts/Rev Rotor Inertia - 0.014 - oz-in-sec^2 9.890 - 10^-5 Kg-m^2 Weight - 5.0 - lb 2.27 - kg Shaft Diameter - 0.375 - in 9.53 - mm Shaft, Radial Load - 15 - lb 6.80 - kg Shaft, Axial Thrust Load - 3 - lb 1.36 - kg
