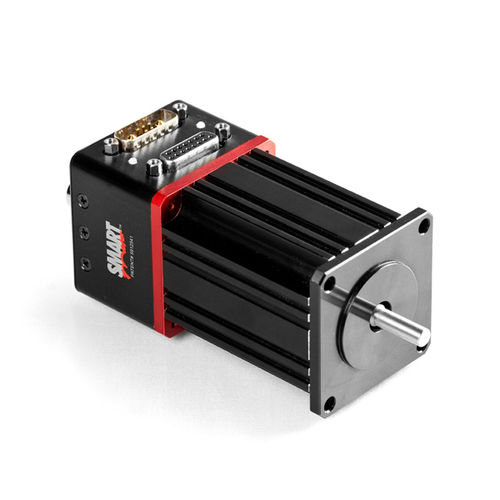

Electric actuator SM23375DTrotaryfor aircraftwith servo-motor
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- rotary
- Applications
- for aircraft
- Technology
- with servo-motor
- Torque
0.59 Nm, 1.11 Nm
(0.435 ft.lb, 0.819 ft.lb)
Description
NEMA 23 size SmartMotor™ with a higher speed, integrated motor, controller, amplifier, encoder and communications bus.
Nominal Continous Power - 186 - Watts
No Load Speed - 4,000 - RPM
Max. Continous Current* @ 3250 RPM - 4.52 - Amps
Peak Power @ 2450 RPM - 235 - Watts
Voltage Constant - 10.95 - V/kRPM
Inductance - 0.906 - mH
Encoder Resolution - 4,000 - Counts/Rev
Rotor Inertia - 0.0019 - oz-in-sec^2
1.342 - 10^-5 Kg-m^2
Weight - 2.2 - lb
0.98 - kg
Shaft Diameter - 0.250 - in
6.35 - mm
Shaft, Radial Load - 7 - lb
3.18 - kg
Shaft, Axial Thrust Load - 3 - lb
1.36 - kg
