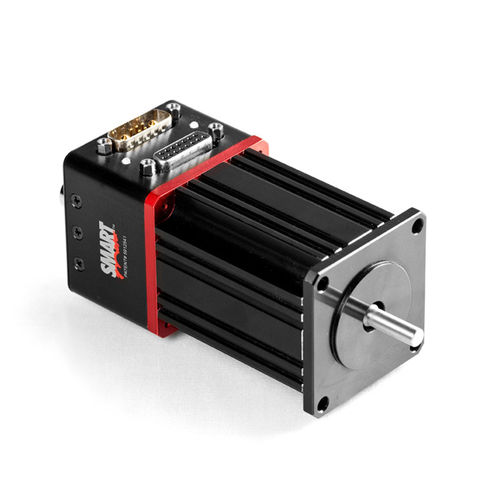

Electric actuator SM23375D

rotaryfor aircraftwith servo-motor

NEMA 23 size SmartMotor™ with a higher speed, integrated motor, controller, amplifier, encoder and communications bus. Nominal Continous Power - 191 - Watts No Load Speed - 8,000 - RPM Max. Continous Current* @ 6000 RPM - 5.072 - Amps Peak Power @ 4750 RPM - 220 - Watts Voltage Constant - 5.62 - V/kRPM Inductance - 0.770 - mH Encoder Resolution - 4,000 - Counts/Rev Rotor Inertia - 0.0019 - oz-in-sec^2 1.342 - 10^-5 Kg-m^2 Weight - 2.1 - lb 0.95 - kg Shaft Diameter - 0.250 - in 6.35 - mm Shaft, Radial Load - 7 - lb 3.18 - kg Shaft, Axial Thrust Load - 3 - lb 1.36 - kg
