Electric actuator SM23305D
rotaryfor aircraftwith servo-motor

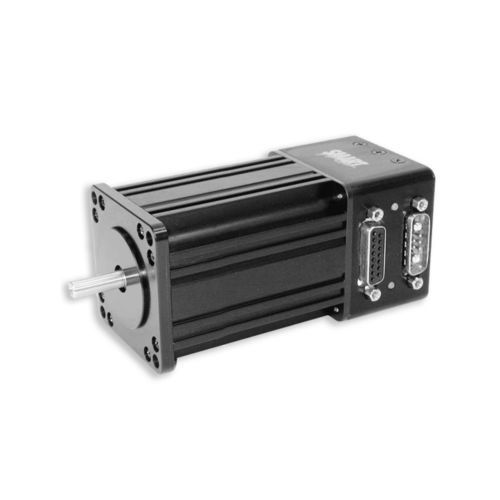

Electric actuator - SM23305D - MOOG Animatics - rotary / for aircraft / with servo-motor
Electric actuator - SM23305D - MOOG Animatics - rotary / for aircraft / with servo-motor
Electric actuator - SM23305D - MOOG Animatics - rotary / for aircraft / with servo-motor - image - 2
Electric actuator - SM23305D - MOOG Animatics - rotary / for aircraft / with servo-motor - image - 3
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
rotary
Applications
for aircraft
Technology
with servo-motor
Torque

0.45 Nm, 0.77 Nm
(0.332 ft.lb, 0.568 ft.lb)

Description

NEMA 23 size SmartMotor™ with integrated motor, controller, amplifier, encoder and communications bus. Nominal Continous Power - 220 - Watts No Load Speed - 5,600 - RPM Max. Continous Current* @ 4750 RPM - 5.57 - Amps Peak Power @ 4100 RPM - 325 - Watts Voltage Constant - 8.873 - V/kRPM Inductance - 0.61 - mH Encoder Resolution - 4,000 - Counts/Rev Rotor Inertia - 0.00332 - oz-in-sec^2 2.344 - 10^-5 Kg-m^2 Weight - 2.3 - lb 1.03 - kg Shaft Diameter - 0.250 - in 6.35 - mm Shaft, Radial Load - 7 - lb 3.18 - kg Shaft, Axial Thrust Load - 3 - lb 1.36 - kg
