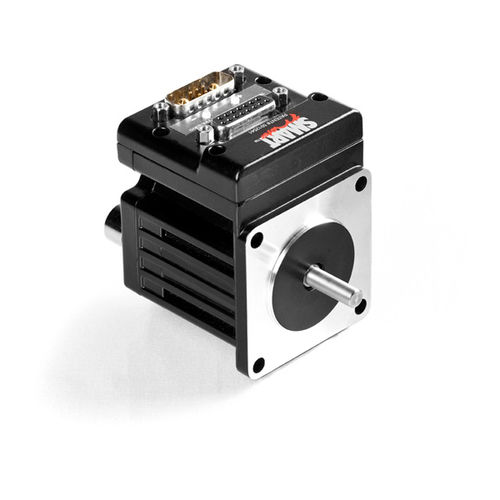

Electric actuator SM23165D

rotaryfor aircraftwith servo-motor

NEMA 23 size SmartMotor™ with integrated motor, controller, amplifier, encoder and communications bus. NEW: CDS7 Option. Nominal Continous Power - 181 - Watts No Load Speed - 10,400 - RPM Max. Continous Current* @ 6500 RPM - 4.70 - Amps Peak Power @ 6100 RPM - 183 - Watts Voltage Constant - 4.45 - V/kRPM Inductance - 0.829 - mH Encoder Resolution - 4,000 - Counts/Rev Rotor Inertia - 0.00099 - oz-in-sec^2 0.6991 - 10^-5 Kg-m^2 Weight - 1.0 - lb 0.45 - kg Shaft Diameter - 0.250 - in 6.35 - mm Shaft, Radial Load - 7 - lb 3.18 - kg Shaft, Axial Thrust Load - 3 - lb 1.36 - kg
