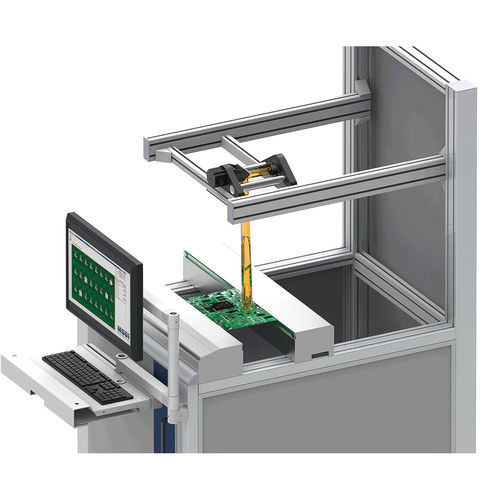

Optical inspection system TOPSCAN

for the aeronautical industry

INLINE CODE READING AND INSPECTION SYSTEMS MODI supplies optical reading and inspection systems, to ensure traceability of their production processes. SIMPLE INTEGRATION With the patented camera technology the field of view of a camera can be distracted to various positions with just one camera. Tailored to the individual needs of each customer, MODI supplies either a complete process system including Board conveyor technology or detached camera systems with SMEMA interfaces for easy integration on existing board handling equipment. SCANSTATION ADODAT 4000 The fully-fledged inspection cell from MODI impresses with its state-of-the-art camera technology, proven board handling and modern design. A transport conveyor from Nutek serves as the basis. A partnership that has grown over the years has enabled the two systems to merge seamlessly. Benefit from the many years of experience of the companies with their core competencies in the areas of camera surveillance and board handling. MODI TOPSCAN UNIT Detached from the actual board handling equipment, MODI developed a camera system for optical inspection and code reading tasks. With integrated digital inputs and outputs and its own SMEMA interface, the TopScan unit can be installed above any conveyor belt.
