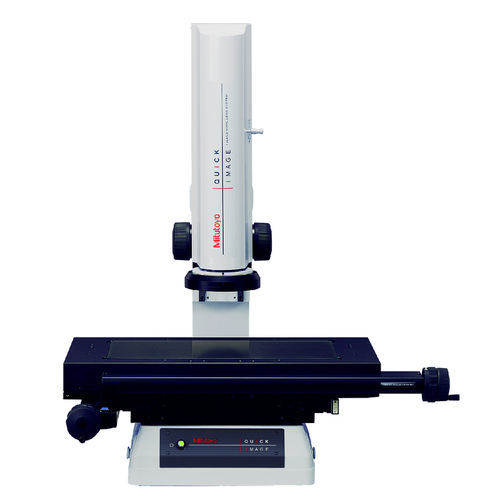

Non-contact coordinate measuring machine QI-A1010D

camera-basedfor aeronautics

The ultimate in simple operation with one click measurement. This non-contact 2D vision measuring system brings you a new concept in 2D vision measuring instruments. It offers several unique features to improve the efficiency of your measurements, including: Large depth of field and wide field of view. Double telecentric optical system. 3 megapixels colour camera. 4-quadrant LED ring light. Motorized stage models provide highest measurement efficiency. Stage glass size: 170 x 170 [mm] Measuring Mode: High-resolution mode and Normal mode Optical system working distance: 90 mm Optical system depth of focus : High-resolution mode : ±0.6 mm; Normal mode : ±11 mm Accuracy (1): E1(x,y) = ±(3.5+0.02L) μm*L = measuring length (mm) Optical system magnification: QI-A models : 0.2X CCD camera: 3 Megapixels colour CCD camera Illumination: - Contour- Coaxial- 4-quadrant LED (RL) Accuracy within the screen (±2σ): Specifications when at focal position QI-A models : ±2 μm (high-resolution mode) ±4 μm (normal mode) Repeatability (±2 σ) within the screen: QI-A models : ±1 μm (high-resolution mode) ±2 μm (normal mode) Functions: QI-A models, 0.2x Magnification, Manual stage
