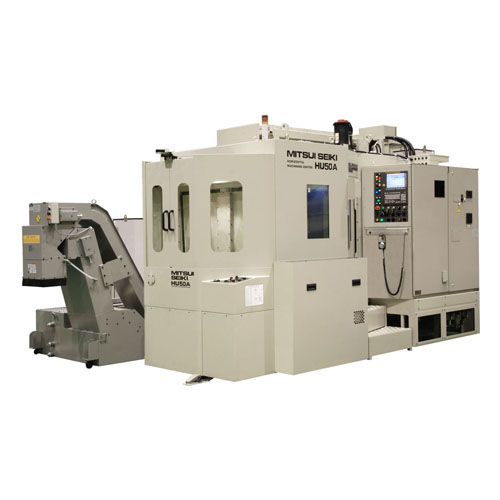

3-axis machining center HU50A
4-axishorizontalfor the aerospace industry

3-axis machining center - HU50A - MITSUI SEIKI KOGYO CO., LTD - 4-axis / horizontal / for the aerospace industry

Add to favorites

Compare this product

Characteristics

Number of axes

3-axis, 4-axis

Spindle orientation

horizontal

Applications

for the aerospace industry

Rotational speed

Min.: 80 rpm
(503 rad.min-1)

Max.: 8,000 rpm
(50,265 rad.min-1)

X travel

720 mm
(28.35 in)

Y travel

700 mm
(27.56 in)

Z travel

650 mm
(25.59 in)

Description

●Box guide ways realize long term high-precision and high rigidity. Heat treated box guide ways are attached to the surface which has high straightness and perpendicularity by scraping. 　　　　　　　　　　　　　　　　　　●The load to the column sliding section is reduced by air support for smooth high-speed feed despite the sliding method. 　　　　　　　　　　　　　　●Highly rigid Y-shaped integrated three-point support bed is adopted.●Ball screws of all axes are placed in the center of the sliding surface to minimize the position difference. (In the case of standardi spindle of HU63A/HU80A) 　　　　　　　　　　　　　●Y axis ball screw is adopted twin drive, minimized position difference. (In the case of HPX63)
