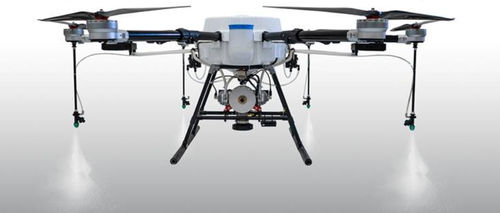

Agricultural drone 128MA

industrialrotary wing

DLE-128MA uses a DLE128HD water-cooled two -stroke engine which won a number of patents,and has the characteristic of light weight, high power, low temperature, long life-span. Water temperature shouldn’t exceed 80C°, if the water temperature too high will lead to short life -span, or instability of output power. Stable power output should be provided, equipped with generator power of 7.4KW, with a takeoff weight of 53KG, the 128MA can carry up to 20KG. The drone use regular gasoline, it solves the problems that battery is short lifetime, long charging time , high battery consumption which is inconvenient for people to use when outgoing cause need to carry generating system.Supported by its outstanding flight performance , the DLE 128MA can continuously spray 40 L pesticides once to refuel ,and the working efficiency is greatly improved 2-3 times. Main arms uses foldable design, with six-rotor. The arms can be quickly folded , making it easy for transportation. Wheelbase - 1900mm, spray width of 8 Meter,it can spray 200 acres per hour . Supported by its excellent micropump control and flow control system, the 128MA has the feature of high payload , strong wind field, strong penetrability, it can provide higher precision and better control for the spraying speed. It designed with the function of routing planning,autonomous flight /semi-autonomous flight, and it’s easy to operate.， It designed with the function of routing planning,autonomous flight /semi-autonomous flight, intelligent planning routing through high-resolution maps, and automatically plan spray path according to the terrain.
