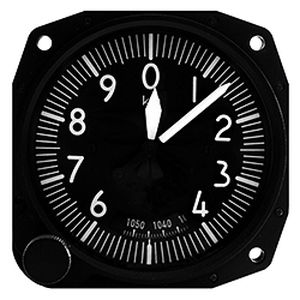

Analog altimeter LUN 1124
meters3-inchfor aircraft

Analog altimeter - LUN 1124 - Mikrotechna Praha a.s. - meters / 3-inch / for aircraft
Analog altimeter - LUN 1124 - Mikrotechna Praha a.s. - meters / 3-inch / for aircraft
Add to favorites
Compare this product


Characteristics

Display
analog
Measurement unit
meters
Size
3-inch
Applications
for aircraft
Other characteristics
illuminated, TSO
Altitude range

Max.: 10,000 m
(32808'04" )

Min.: -300 m
(-984'-3" )

Description

Pressure sensitive altimeters are aircraft instruments indicating the flight altitude or height on the basis of measuring barometric pressure, changing with the altitude. The pointer display is actuated by a high stability beryllium capsule. A built-in vibrator minimises friction and optimises accuracy. The instrument is intended for measuring and indicating altitude or height between –300 and 10,000 m according to the model. Height is indicated by two pointers. One revolution of the bigger pointer indicates change in height of 1,000 m with graduations of 10 m. The smaller pointer has a range of 10,000 m per revolution. The altimeter has a built-in barometric counter with a range of 890 – 1,053 mb. The barometric scale can be made in different units of pressure. There is also a version with an illuminated instrument face (supply voltage: 5, 14, 28 VDC - according to customer requirements). This instrument fulfills the requirements and methodology rules ICAO and NLGS-2.
