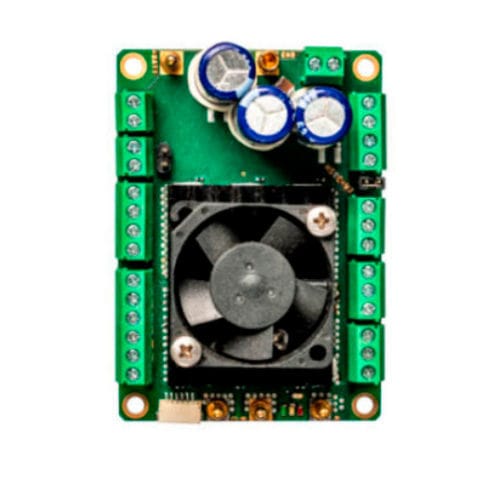

Brushless motor controller 4063-3

63 VDC0 - 5 kWfor aircraft

High performance, compact dimensions, and weight make these electric speed controllers perfect for electric aircraft, boats and ships, motorbikes, UAVs, multirotors, various EVs, paramotors (special FW), pumps, winches and cranes, undercarriage, and other industrial applications. HSBC series brushless motor controllers are among the smallest in terms of dimensions and performance (up to 3 kW). They are exceptional for their range of configurations, reliability, ease of installation and configuration. This motor controller is used in various project made by well known company Husqvarna. max continuous current1 40-50 A peak current 56-70 A efficiency up to 99% monitoring complex data monitoring cooling air/fluid weight 80 g COMMUNICATION CAN | RS232 | RS485 MOTOR SENSORS 3 Hall sensors CONTROL SIGNALS PWM | potentiometer | voltage | data | log.signal VARIOUS ADJUSTABLE PARAMETERS 69 parametres. VERY HIGH EFFICIENCY 98-99% EMERGENCY DISCONNECTION Safe to disconnect during the operation. COMPLETE GALVANIC INSULATION INTERNAL DATA LOGGING (BLACKBOX) Reports 22 values. SUPPORT OF EXTERNAL DISPLAY UNITS Real time monitoring of important values. Exceptional features for its class Full PC-communication capabilities are a given, along with real-time monitoring and operational data logging for a nearly unlimited amount of time. Just like HBC electronic speed controllers, the HSBC series offer a wide spectrum of operating modes, control and configuration options and other unique characteristics.
