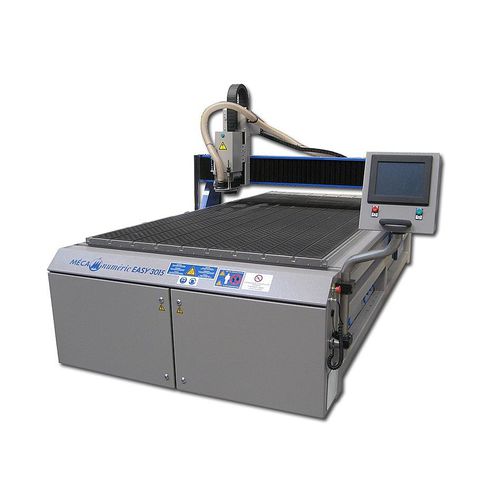

CNC milling machine MECAEASY verticalfor aeronautics3-axis
Add to favorites
Compare this product
Characteristics
- Type
- CNC
- Spindle orientation
- vertical
- Other characteristics
- for aeronautics, 3-axis
- X travel
520 mm, 720 mm, 1,050 mm, 1,520 mm, 3,020 mm
(20.47 in, 28.35 in, 41.34 in, 59.84 in, 118.9 in)- Y travel
750 mm, 1,020 mm, 1,050 mm, 1,520 mm
(29.53 in, 40.16 in, 41.34 in, 59.84 in)- Z travel
200 mm, 350 mm
(7.87 in, 13.78 in)
Description
Faster, endowed with a stiffened frame and gantry, equipped with more powerful spindles, the MECA EASY will meet your most demanding productions in 2D as in 3D
STRENGHTS
Mono-bloc frame in high inertia welded steel and mobile gantry in steel.
Milling speed up to 18m/min
Plate : fixed table made of wide section of aluminium profiles .
Guiding by grinded rails and preloaded circulation ball bearings.
Transmission by accuracy ball screw on the 3 axes.
CN7000 digital monitoring with colour touch screen and motorization by brush-less servo-motors.
A range of 8 formats for the versatility.
Z 350 option for the 3D applications.
Quality and performances matched to the production.
The simplicity of use
Compliant with the European safety directives.
Many options : servo-motors "brush-less", micro- lubrication, automatic tool changer, vacuum table (with turbine or vacuum pump), high frequency spindle, engraving spindle with nose follower, fourth axis.
OPTIONS
Microlubrication,
Automatic tool changer,
High frequency spindles,
Fourth axis…
