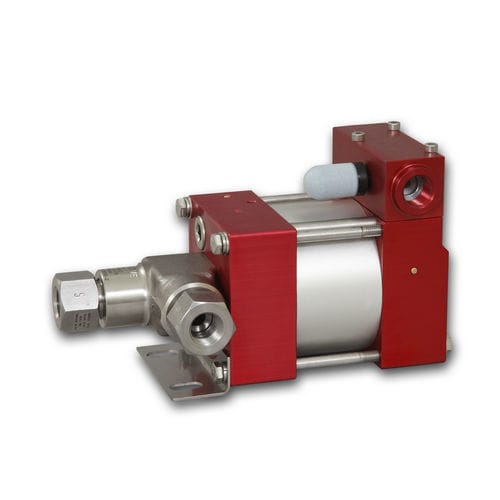

Water pump M series

oil300 + barfor aircraft

Maximator pumps of the M series are available in single- or double-acting design with one, two or three air drive pistons. Features high pressure pumps M series single acting single air drive head M pumps in single-acting design are distinguished by their light, compact construction. M4 to M12 pumps have aluminium bodies and stainless steel plungers. M22 to M189 have stainless steel bodies and plungers. All M pumps have polyurethane seals with NBR O-rings, UHMWPE package and FKM O-rings for water service is available as option. All M pumps are standard with bottom inlet, side inlet is available as option. Options for M series Seal material for oil use (standard pump): Order code: M37 – (L) Seal material for water use: (not available for M ...-2/M...-3 and M ...-01H types) Order code: M37 – (L)VE / M37D – VE Special seal material to handle special fluids: Order code: See fluid compatibility guide Side inlet for single acting versions: Order code: M37(L) – S / M37(L)VE – S External pilot port modification: (only available for M22 to M189 single acting, single air drive head types) Order code: M37 – DIR Spring return and hand lever attachment: (modification only available for M22 to M189 single acting, single air drive head types) Order code: M37 – 01H Special inlet and outlet ports (i. e. NPT): M37 – NPT Air control unit for M series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: M37 with C1
