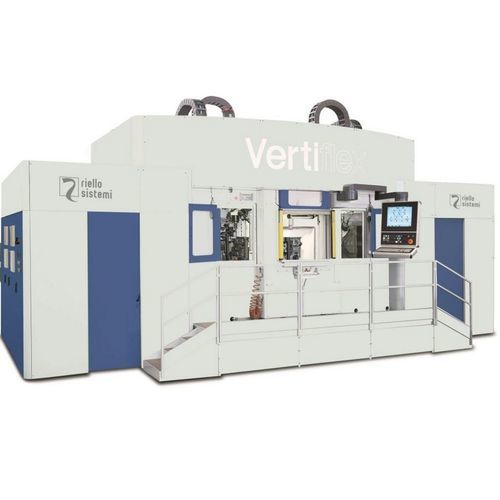

Rotary transfer machine VFX 450

6-position8-positionmachining

the big version of the VFX Flexible Transfers Machines, is a flexible manufacturing cell which combines the high production capacity of a conventional rotary Transfer Machine with the high flexibility of the machining centers. Available with 4 or 6 station clamping fixtures, it can be equipped with 5 thru 8 machining centers, each one equipped with 6 or 8 position tool change revolver head. Maximum flexibility, achieved by mounting up to 64 tools in the full configuration, means the possibility to produce parts of any shape which can fit into a 450mm cube. Machining five sides in one chuck assures a high quality of the finished parts. To be particularly underlined the possibility to employ one or more full CNC facing heads on the tool change revolver head. You can find all detailed technical figures in the "CATALOG AREA". You can also see samples of this product in the Photo's and Video's gallery, here below.
