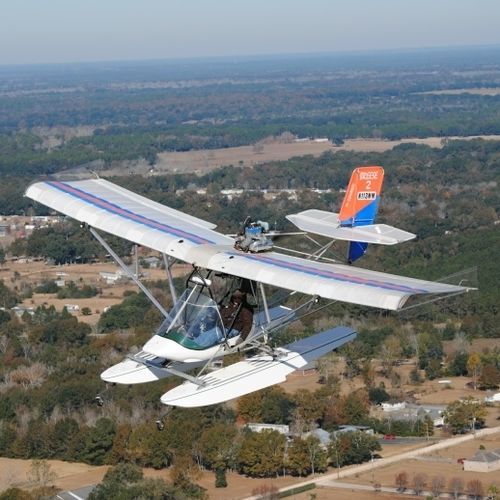

2-person ULM aircraft B2-SS-582-WF2-stroke engineinstructionalsingle-engine
Add to favorites
Compare this product
Characteristics
- Number of seats
- 2-person
- Motorization
- 2-stroke engine
- Applications
- instructional
- Other characteristics
- single-engine, amphibious
- Length
19'00"
(5.79 m)- Height
7'00"
(2.13 m)- Wingspan
31'00"
(9.45 m)- Wing surface
173 ft²
- Empty weight
685 lb
(311 kg)- Max. take-off weight
1,430 lb
(649 kg)- Fuel capacity
16 gal
- Cruise speed
51 mph, 55 mph, 72 mph
(82 km/h, 89 km/h, 116 km/h)- Take-off distance required
165'00"
(50 m)- Landing distance required
300'00"
(91 m)
Description
rotax 582 Power plant Engine with "C" Gearbox,
warp drive propeller,
EIS Engine Information System,
Center mounted controls,
Large lord mounted anti-vibration engine mount,
Stainless Steel pilot roll cage,
Aerodynamic lift and iury struts with adjustable fittings,
High lift airfoil with 14"rib spacing,
Center hard-shell gap cover,
Bungee trim system,
Full Lotus 1430 Floats std. (other float manuf. - call for quote)
GENERAL SPECIFICATIONS
Model Rotax582
No. Cylinders2
Displacement580.5 CC
Horsepower65 H.P.
Recommended T.B.O.300 Hrs
PropellerWD-ADJ
wing Loading7.63 lb/sq
Seats2
useful Load745 lbs
Payload w/Full Fuel649 lbs
PERFORMANCE
Takeoff Distance, 50 Ft Obstacle 425 ft
Rate of Climb 625 fpm Max Level Speed, Sea Level 72 mph
Glide Ratio 5.95 to 1
Minimum Sink Rate 645 fpm
