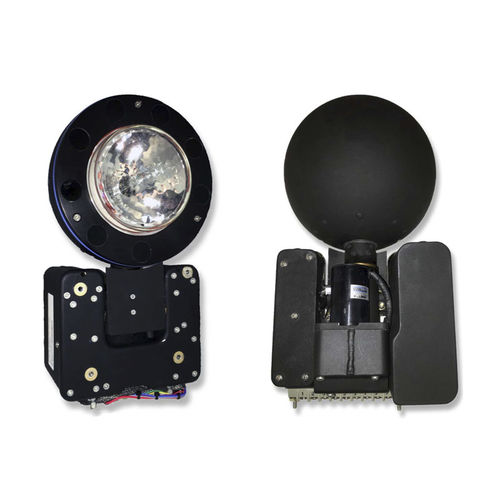

HID searchlight

for aircraft

INPUT VOLTAGE: 28 VDC NOM MAX POWER: • HID BALLAST – 180 W AT START-UP, 90 W NOM • IR LAMPS – 22.5 W • MOTORS – 145 W WEIGHT: 6.7 LB. MAX, 3.04 KG MAX DIMENSIONS: 11.98” X 6.51” X 4.12” MAX 305 MM X 166 MM X 105 MM MAX ILLUMINATION CHARACTERISTICS: • BEAM SPREAD (WHITE): 15°±5° • PEAK INTENSITY: 300K CD MIN • BEAM SPREAD (IR): 20°±5° • MIN IR INTENSITY: 50 W/SR (NVIS-A) SINGLE OR DUAL MODE CONNECTOR: TERMINAL BLOCK WITH #6-32UNC-2A BINDING HEAD SCREWS MAX AIRSPEED: • 90 KNOTS (EXTENDED) • 160 KNOTS (STATIONARY) MAX CANOPY ROTATION TIME: 360° IN 15 SEC MAX WHITE OR IR LAMPS WILL OPERATE WHEN CANOPY IS EXTENDED BEYOND 60° OR WHEN CANOPY IS ROTATED LESS THAN 90° FROM FORWARD
