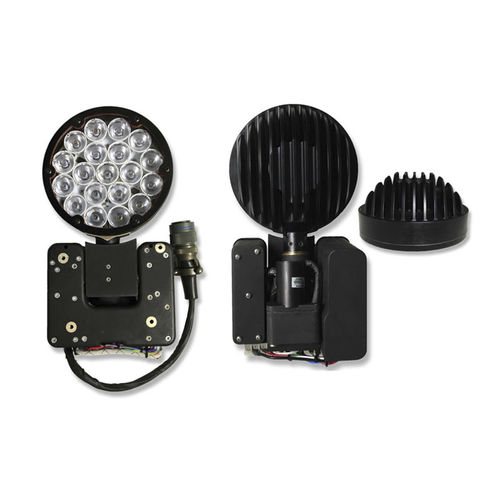

LED searchlight

for aircraft

INPUT VOLTAGE: 28 VDC NOMINAL MAX POWER: • LED LIGHT – 120 W • IR LAMPS – 10 W • MOTORS – 150 W WEIGHT: 8.1 LB MAX, 3.57 KG MAX (WITH TERMINAL BLOCK) DIMENSIONS: 11.59” X 6.25” X 3.56” MAX 295 MM X 159 MM X 91 MM MAX ILLUMINATION CHARACTERISTICS: • BEAM SPREAD (WHITE): 13°±3° • PEAK INTENSITY: 300K CD TYPICAL • BEAM SPREAD (IR): 15°±5° • MIN IR INTENSITY: 10-24 W/SR MAX (NVIS-B) SINGLE OR DUAL MODE CONNECTOR: TERMINAL BLOCK MAX AIRSPEED: • 120 KNOTS (EXTENDED) • 180 KNOTS (STATIONARY)
