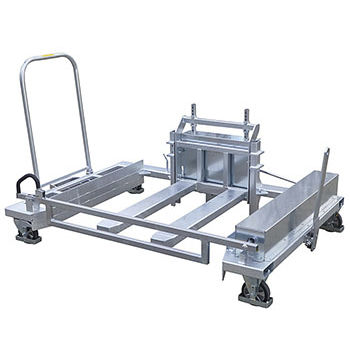

Taxi station trolley Lift-Liner

FEATURES to accommodate different transportequipment with swivel castors ergonomic handling securing of the cargo not required virtual clutch and drawbar system dimensions outside l x w x h in mm: 2145 x 1365 x 1220 effective surface l x w x h in mm: max. 1325 x 1075 weight in kg: 220 loading capacity in kg: 500 technical data: galvanised steel welded structure push handle for manual delay the most diverse transport devices with castors and a floor space of no more than LxW = 1325 x 1075 mm can be picked up adaptation to to the transport task possible: Basic height of the lift device can be adjusted to 4 levels (109 / 159 / 209 / 234 mm above the floor) the basic height should be selected in a way that the device to be transported is lifted at least 25 mm from the floor the cargo is lifted completely from the floor with a single motion (~95°) of the activation lever the lever remains automatically in the opened and closed stop position, which is equipped with a lock as a redundant safety device securing of the cargo not required virtual clutch and drawbar system designed on a fixed lift path of 80 mm serial running gear: high-grade steering and fixed castors with non-marking polyurethane tread all rollers equipped with protection against being run over centrally operated immobilisation system
