DME tester LR-1

aeronautical

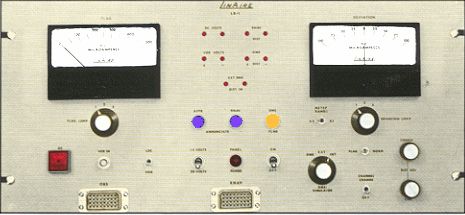

The LinAire LR1 Area Navigation Control Panel is extremely versatile, requiring only an external VOR signal and OBS to service RNAV systems. Simulation of DME signals can be internally generated, externally simulated, or a DME unit can be used. Panel functions and controls: METERING Deviation Meter 100-0-100 microamperes Flag Meter 0 - 500 microamperes LOAD SWITCHING Deviation Loads 1 to 3 1K-ohms Flag Loads 1 to 3 1K-ohms FUNCTION SWITCHES DME Simulator source selector VOR/LOC switch Channel Change switch Distance Adjust Pots for internal DME 14/28 Volts select switch Power On switch INDICATOR LAMPS APPR Annunciate RNAV Annunciate DME Super Flag Panel Power
