NAV/COM tester LA-6

aeronautical

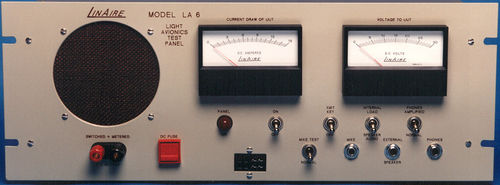

The LinAire LA-6 Light Com/NAV Test Panel is engineered to handle the popular lightweight panel mounted avionics systems that are on the market today and adaptable to future models. The unit is a low profile (7 inches high) improved version of our dependable old LA-5 that has served the aviation community since 1966. A Headphone amplifier has been added to eliminate the need for headphones when checking headphone or sidetone audio. This is a selectable function, either amplified to the panel speaker or normal phones operation selected by toggle switch. The panel has a improved microphone test circuit for checking pilot microphones. The voltage and current is monitored by 4 inch analog meters. The panel comes enclosed in its own cabinet back and allows for standard rack mounting or stand alone use. Panel functions and controls Metering: Current Meter 0 - 15 Amps DC Voltage Meter: 0 - 30 Volts DC The Panel Speaker: 5 watt 8 ohm or a 4 ohm internal load is selectable by toggle switch. Also provided for is an external speaker or watt meter connection, an external speaker output jack. Microphone: A Microphone jack is provided for mike audio input and can be switched to a MIKE TEST circuit to test the microphone. Also provided is a microphone key switch for keying the transmitter without a mike.
