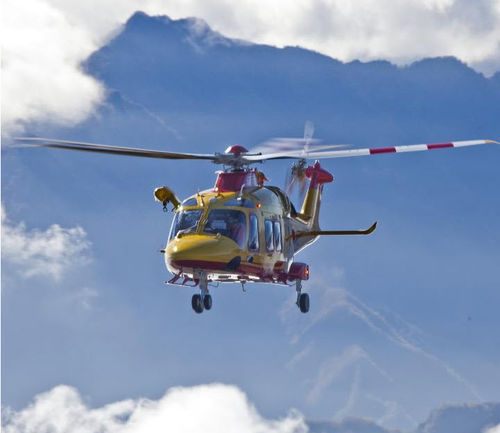

6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 2
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 3
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 4
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 5
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 6
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 7
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 8
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 9
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 10
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 11
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 12
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 13
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 14
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 15
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 16
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 17
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 18
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 19
6 - 10 Pers. helicopter - AW169 - Leonardo – Finmeccanica - utility / transport / medical evacuation - image - 20
Add to favorites
Compare this product


Characteristics

Passenger capacity
6 - 10 Pers.
Mission
utility, transport, medical evacuation, for public security
Type of engine
turboshaft
Other characteristics
single-rotor
Range
500 - 1000km
Payload
1000 - 5000 kg
Length

14.65 m
(48'00" )

Height

4.5 m
(14'09" )

Rotor diameter

12.12 m
(39'09" )

Empty weight

4,600 kg, 4,800 kg
(10,141 lb, 10,582 lb)

Cruise speed

144 kt

Range

785 km
(488 mi)

Description

Next-generation versatility The AW169 meets the growing demand for a next-generation helicopter in the light-intermediate category that combines best-in-class performances with superior range and safety. The versatile AW169 brings unrivalled operating capabilities in the most challenging conditions. It also features a unique-in-class Auxiliary Power Unit (APU) mode that ensures mission-readiness with rotors stopped and enhanced ground safety. Dedicated to saving lives The AW169 is designed around patient needs and is the ideal platform for life-saving primary and secondary missions, and rescue services. Thanks to its advanced technologies and flexibility, the AW169 ensures a rapid emergency response, even for long-distance inter-hospital transport or for Emergency Medical Services (EMS) and Search and Rescue (SAR) missions at high altitude. Advanced technology and safety The AW169 ensures the highest levels of safety. It meets all the latest certification standards and regulations, while the glass cockpit combines latest-generation avionics with exceptional external visibility. This maximises situational awareness and minimises pilot workload during day and night operations, increasing operational safety. Exceptional cabin flexibility The helicopter has the largest cabin in its class. The flexible design can accommodate two stretchers, either longitudinally or transversely along with a full suite of advanced life-support equipment. Wide sliding doors allow easy access, while the spacious cabin ensures entire access to the patient. A large separated baggage compartment is available to store additional stretchers and equipment.
