Image analysis software LIF

thermal analysisfor aeronautics

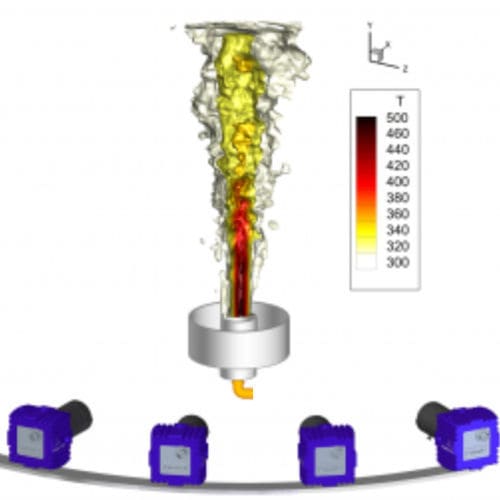

Several imaging techniques have been developed to measure temperature in both liquid- and gas-phase flows. Because there is no single temperature imaging technique that can be applied under all circumstances, the particular application must be carefully considered. The experimental conditions and the type of thermal flow determine the selection of the best suitable method of temperature imaging. Background Oriented Schlieren (BOS) is an attractive alternative to laser imaging methods minimizing experimental efforts. BOS extracts temperature information from measured density gradients present in the thermal flow. Gas Thermometry using different Imaging Techniques Temperature fields in a heated air jet at 700 K measured with four optical methods are shown in the figure below. The standard deviation of each averaged temperature field is also indicated. More information is given in our Application Note “Temperature Imaging in Thermal Gas Flows”. LaVision’s FluidMaster systems for LIF-Thermometry in thermal flows are using a variety of temperature sensitive LIF tracers for 1- and 2-color LIF thermometry: 1-color LIF Thermometry: At constant tracer seeding density the LIF signal is directly related to the local flow temperature, but laser light sheet and laser beam absorption corrections has to be applied. These corrections are provided in our LIF image processing module in DaVis. 2-color LIF Thermometry: In case the LIF tracer concentration is not constant, 2-color LIF thermometry is the best choice for fluid temperature measurements. This LIF imaging method uses the image ratio of two LIF emissions at different wavelengths (colors) to measure the fluid temperature.
