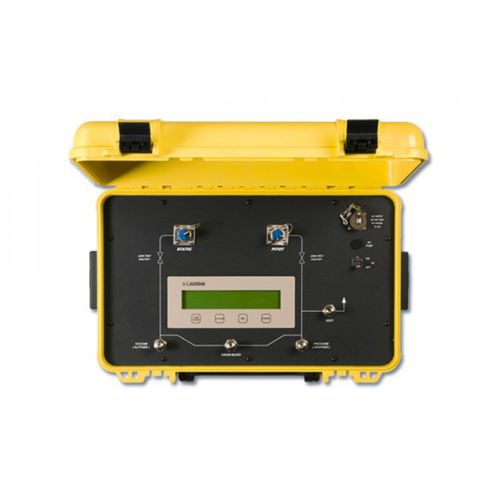

Pressure tester 6150

pitot-staticaeronauticalportable

The 6150 Tester connects directly to an aircraft’s Pitot and Static system. It allows the user to simulate altitude, airspeed, and VSI and also to perform leak checks on both the Pitot and Static systems of an aircraft. The high accuracy of the digital transducers used in the tester makes it suitable for performing leak checks on any aircraft. The tester has built-in, high-capacity vacuum and pressure pumps that make it capable of handling leak-checks on any type of aircraft, including wide-body transport and cargo aircraft. Leak values are clearly displayed in 1, 3, and 5 minutes intervals. Several protection features are included in the tester to reduce the possibility of damage to the aircraft instruments. The solid-state transducers are immune to damage due to pressure surges. Calibration is required only once a year. Static Port Accuracy: 0.008 inHg 8 ft. @ 0 ft. 24 ft. @ 35,000 ft. 48 ft. @ 50,000 ft. Range: -2000 to 60,000 ft. Resolution: 1 foot / 0.001 inHg Climb: 0 to 10,000 ft/min Leak Resolution: 1 ft/min Pitot Port Accuracy: 0.008 inHg 2.0 knots @ 50 knots 1.0 knots @ 100 knots 0.5 knots @ 200 knots 0.2 knots @ 500 knots Range: 0 to 500 knots Resolution: 0.1 knot / 0.001 inHg Leak Resolution: 0.1 knot/min Units Static: Feet, meters, inHg, mbar Pitot: knots, kmph, inHg, mbar Power Requirement 90-260 VAC, 47-440 Hz, 50 VA Dimensions & weights 18″ x 12″ x 7″ / 18 lbs Environmental Specs Operating temp. 0°C to 50°C Storage temp.: -40°C to 75°C Humidity: 5 to 100%
