Pressure tester 6600

pitot-staticaeronauticalportable

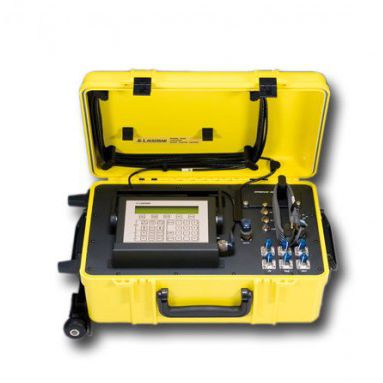

The 6600 Automated Tester is ideal for use on aircraft with SmartProbe™ capable of measuring AOA using Air Data. The tester has one Static output (Ps1), one Pitot output (Pt) and a third output (Ps2) which can be used to simulate either AOA or AOS. Using the small and light-weight Remote unit a user can operate the tester from the cockpit and test the entire pitot and static system of the aircraft. The tester includes built-in vacuum and pressure pumps and emergency manual bleed-down valves. The high accuracy of this unit meets all RVSM requirements. Calibration is required only once a year. Pressure function Range: 0.1 to 42 inHg Resolution: 0.001 inHg Accuracy: ±0.002 inHg Units: inHg, mbar Altitude function Range: -4000 ft. to 60,000 ft. Resolution: 1 foot Accuracy: ± 2 ft. @ 0 ft. ± 6 ft. @ 35,000 ft. ± 12 ft. @ 50,000 ft. Units: Feet, Meters Climb function Range: 0 ft/min to ±25,000 ft/min Resolution: 1 ft/min Accuracy: ±1% of rate of climb Units: Feet/min, Meters/sec PITOT OUTPUT Pressure Function Range: 0.1 to 60 inHg Resolution: 0.001 inHg Accuracy: ±0.003 inHg Pt Units: inHg, mbar, EPR Qc Units: inHg, mbar Airspeed Function Range: 0 to 650 knots Resolution: 0.1 knots Accuracy: ± 0.5 knots @ 50 knots ± 0.25 knots @ 100 knots ± 0.05 knots @ 650 knots Units: knots, Mach, km/hr, mph Rate of change: 0 to 500 knots/min
