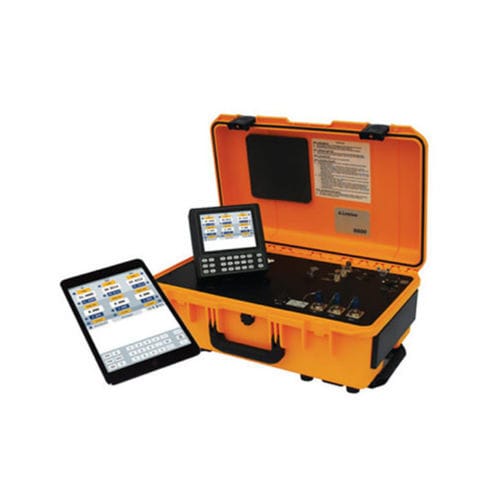

Pitot-static tester 6600-NG

pressurebatteryaeronautical

The Model 6600-NG Automated Tester is designed to test aircraft equipped with SmartProbes™. The tester has one Static output (Ps1), one Pitot output (Pt) and a third output (Ps2) which can be used to simulate either AOA (angle of attack) or AOS (angle of sideslip). Using the small and light-weight Remote, an operator can test the entire pitot and static system from the cockpit. The Model 6600-NG comes with a removable 8-hour battery (optional), wide operating temperature (optional), and “profiles” to accelerate testing. Calibration is required only once a year. The 6600-NG is also WiFi-enabled, which enables wireless remote control using an iPad or other tablets. The Model 6600-NG is approved for Embraer EJETS, Bombardier C-Series, Gulfstream, Honda Jet and most SmartProbe™ equipped aircraft. Pressure function Range: 0.1 to 32 or 42 inHg Resolution: 0.001 inHg Accuracy: ±0.002 inHg Units: inHG, mbar, psi, mmHG, kpa Altitude function Range: -4000 ft. to 60,000 ft. Resolution: 1 foot Accuracy: ± 2 ft. @ 0 ft. ± 6 ft. @ 35,000 ft. ± 12 ft. @ 50,000 ft. Climb function Range: 0 ft/min to ±25,000 ft/min Resolution: 1 ft/min Accuracy: ±1% of rate of climb Units: Feet, meters, inHg, mbar, psi, kpa, mmHg PS2 OUTPUT Pressure function: Same as for Ps1 Altitude function: Same as for Ps1 Climb function: Same as for Ps1 Airspeed Function Range: 0 to 500 knots Resolution: 0.1 knots Accuracy: 0.3 knots @ 50 knots 0.16 knots @100 knots 0.05 knots@ 500 knots Displayed Units (Diff. or Abs.) inHg, mbar, psi, kpa, mmHg, feet, meters, knots, kmph PITOT OUTPUT Pressure Function Range: 0 to 30 inHg(diff.) Resolution: 0.0001 inHg Accuracy: ±0.003 inHg
