Pressure tester 6200

pitot-staticfor altimetersbattery

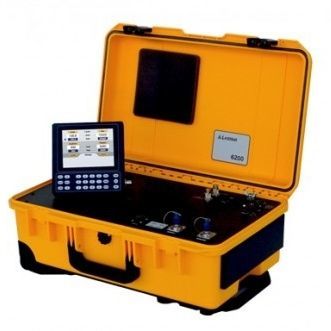

The Model 6200 is a Pitot Static tester targeted for helicopters and Non-RVSM aircraft. It is approved for most Helicopters and is used to perform leak checks and accuracy checks on the Pitot Static systems. Accuracy check is performed on typical flight instrumentation – altimeters, airspeed indicators and VSI’s – and can be done at low airspeeds. The Model 6200 includes a Remote unit with large keypad and display, a removable 8-hour battery (optional), wide operating temperature (optional), and “profiles” to accelerate testing. The unit can be controlled by an iPad or other tablets. Pressure function Range: 1 to 32 inHg Resolution: 0.001 inHg Accuracy: ±0.005 inHg Units: inHG, mbar, psi, mmHG, kpa Pressure Rate Range: 0 to 30 inHg/min Resolution: 0.001 inHg/min Accuracy: ±1% of rate Units: pressure-units/min Altitude function Range: -2000 ft. to 50,000 ft. Resolution: 1 foot Accuracy: ± 5 ft. @ 0 ft. ± 6.5 ft. @ 10,000 ft. ± 10 ft. @ 20,000 ft. ± 15 ft. @ 35,000 ft. ± 30 ft. @ 50,000 ft. Units: Feet, Meters Altitude Rate function Range: 0 ft/min to ±10,000 ft/min Resolution: 1 ft/min Accuracy: ±1% of rate of climb Units: Feet/min, Meters/sec
